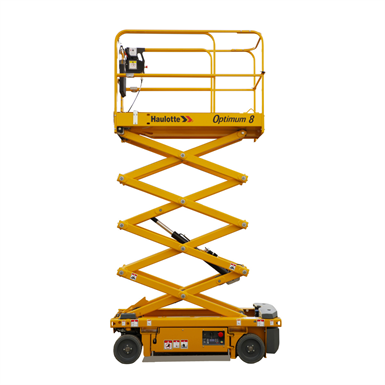

Opti-8 Display Picture

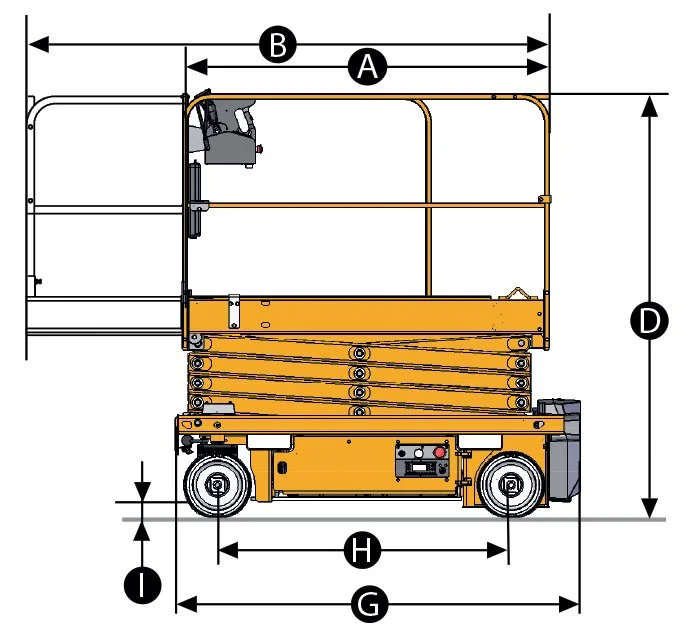

Opt8 Technical Drawing - Side View

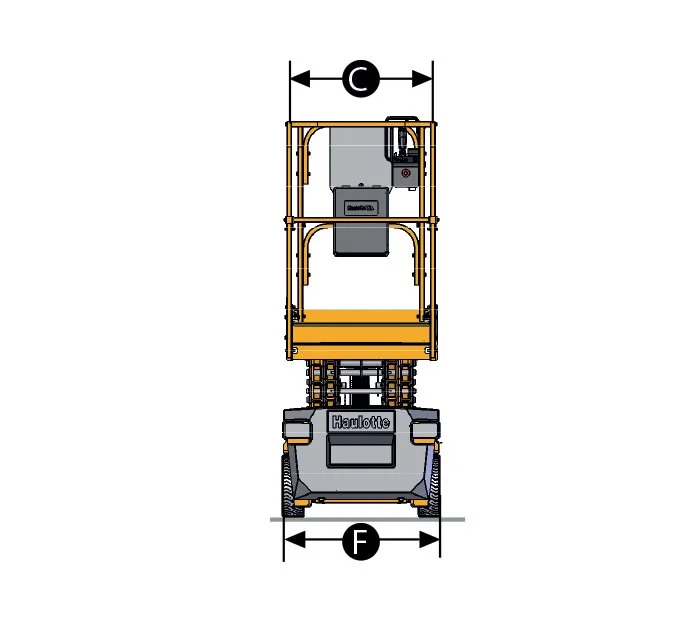

Opt8 Technical Drawing - Front View

8m Electric

The Opti8 is a compact electric scissor lift designed for quiet, efficient indoor work. Its narrow body and highly manoeuvrable design make it ideal for maintenance, fit-outs and tight-access jobs where space and noise are important considerations. With a convenient trailer to move between jobs.

Specs:

  • Working height: 7.77m

  • Platform height: 5.77m

  • Extended platform size: 2.59m x 0.74m

  • Narrow turning Circle (1.5m)

  • Withstands winds of up to 45km/h

  • Load capacity rated to 230kg

  • Includes AC power to platform

  • Stowed size: 1.98m x 0.79m x 1.9m

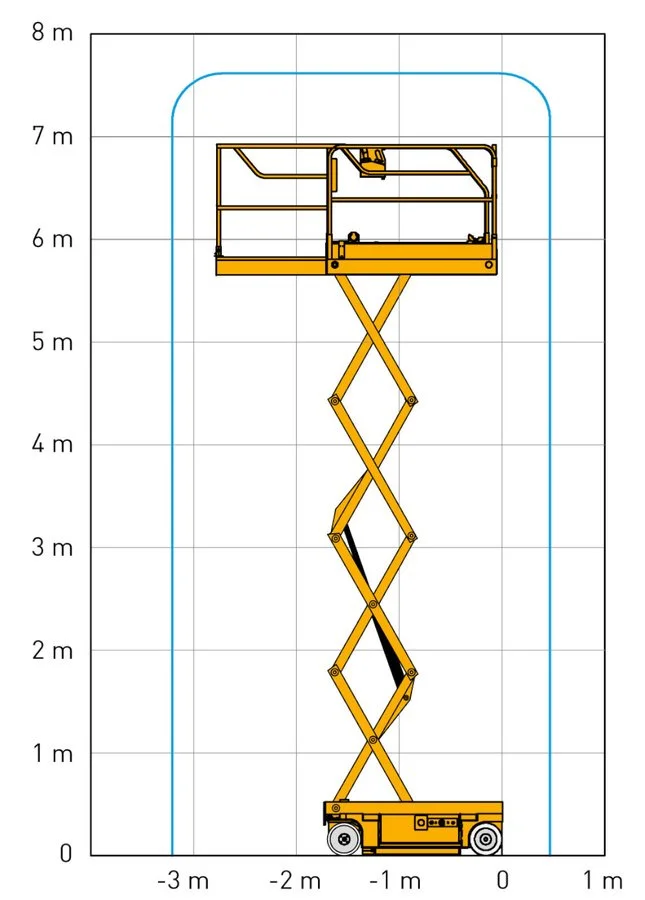

Opt8 Technical Drawing Extended Scissors
